Description:
Limited Edition Accessory Kit: (New for 2024 shown in bold text)

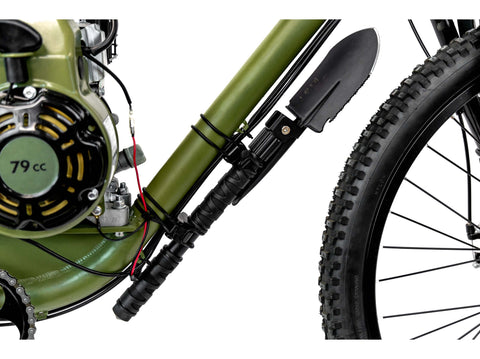

- PHATMOTO Portable/Multitool Shovel
- PHATMOTO 300 Lumen Waterproof Headlights
- PHATMOTO Rear Light
- PHATMOTO Waterproof Electric Bike Horn 120db
- PHATMOTO Bike Mount
- PHATMOTO Flashlight Mount

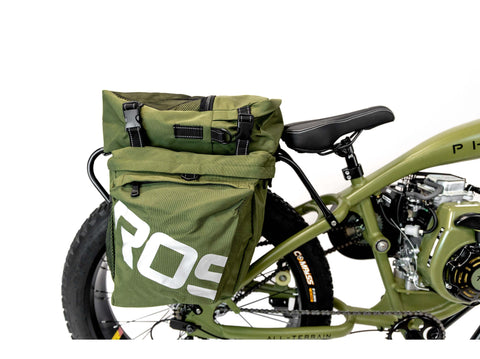

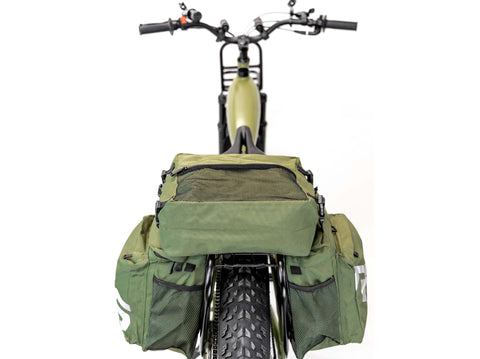

- PHATMOTO 3 in 1 Expedition Touring Cam Pannier
- PHATMOTO 360 Degree Adjustable Rear View Mirror
- PHATMOTO - 7" Cafe Racer style light built in RECHARGABLE BATTERY

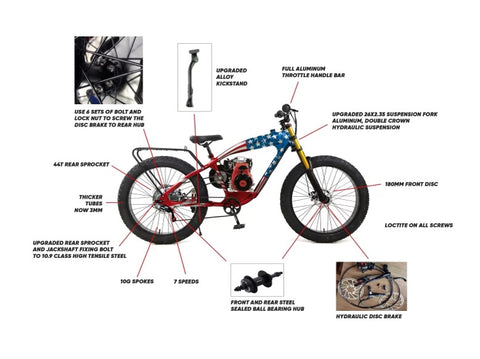

What's new with 2024? (Limited edition only upgrades shown in bold)
- Upgraded 26x2.35 suspension fork, aluminum, double crown, hydraulic suspension with lock
- Upgraded Accessories Kit (see list below)
- Thicker tubes (from 2.4T upgraded to 3T)
- Front and rear hub with sealed bearing
- Upgraded kickstand
- Use of 6 sets of bolt and lock nut to screw the disc break hub
- Upgraded rear sprocket and jackshaft fixing bolt to 10.9 class high tensile steel
- Loctite on all screws
- Full aluminum throttle handle bar
- 10G spokes
- Hydraulic disc brake
- Stronger cardboard with plastic handles and 3 packaging foams
- 44T rear sprocket
- 7 speeds
- 180mm front disc
*Patent Pending Built-in Jack-shaft
- ALL NEW Shimano 7-Speed Gears

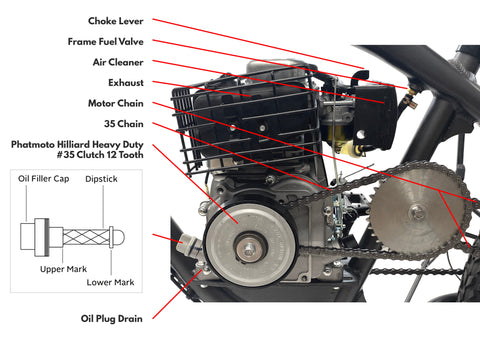

- PHATMOTO Hilliard Heavy Duty #35 Clutch 12 Tooth
- Integrated Gas Tank Frame
- Built-in Frame Upgraded Jackshaft
- 160mm Front Disk Brake
- Rear Disk Brake
- Suspension Front Fork
- 79cc - 3.0 Horsepower 4 stroke Lifan engine
- 100 miles per full tank
- Available in 2 colors
- Comes with removable Front and Rear Racks
- 32 MPH Max. Speed option has a 44 tooth rear sprocket.

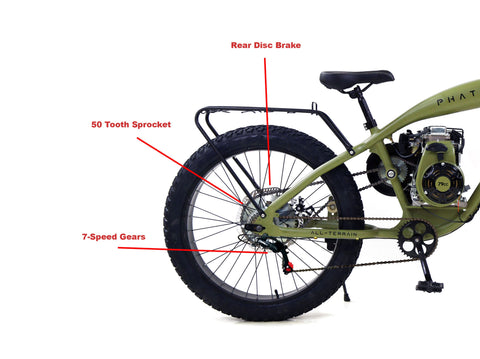

- 25 MPH Max. Speed option has a 50 tooth rear sprocket.
* To upgrade to the 32 MPH Max Speed, it is necessary to replace the stock 50-tooth rear sprocket that originally comes with the bike to 44 tooth sprocket. At PHATMOTO, we take care of this replacement for you, which involves a considerable amount of labor including sizing the 415 chain.
* Please note, this motorized bicycle requires assembly.

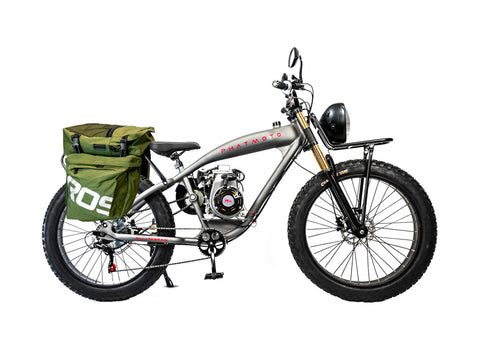

PHATMOTO is the affordable all-in-one motorized bike that eliminates the complexities with engine conversion kits.
Our custom designed gas bike can be pedal or engine-powered and travels up to 100 miles at speeds of 25 MPH/32 MPH on less than 1 gallon of gas. Far from your standard motorized gas-hybrid bike, PHATMOTO hides quite a bit of convenient engineering features within traditional bike frame appearance...
With PHATMOTO'S fully-equipped motorized bicycle, attach the handlebars and front wheel, and with some minimal engine assembly, put in some gas and you're off.
Pedal, Gas Motor, or Hybrid Power
Unlike many DIY conversion kits or electric bikes, PHATMOTO was specifically engineered as a dual purpose gas-hybrid bike that makes it significantly easier to ride when pedaling alone and doesn't restrict the engine when under gas power.
Custom Engineered Bike Frame
Unlike many DIY gas bike conversion kits, PHATMOTO'S bicycle frame is engineered from the ground up to discreetly hide its fuel tank internally, securely bolts its motor to built-in frame mount, and safely encases the drivetrain to avoid accidents.
Easy Pull-Start Handle Engine
Unlike most DIY gas bike conversion kits using two-stroke engines that require vigorous pedaling turn on, PHATMOTO opted for a four-stroke engine with a simple pull-start handle and on/off switch for quick and effortless riding.
Engine Specs
| Engine Type: | 3.0 HP 79cc Lifan Industrial Grade OHV Single Cylinder 4-Stroke |
| Maximum Horsepower: | 3 mhp |
| Displacement: | 79cc |
| Shaft: | 15mm Keyway Output Shaft |
| Bore x Stroke: | 52mm x 46mm |
| Compression Ratio: | 8:1 |
| Engine Speed: | 3600 rpm |
| Starting System: | Recoil |
| 18 amp Charging System: | N/A |
| Fuel Tank Capacity: | 0.75 Gallon, 2.85 L |
| Fuel Type: | 87 Octane Gasoline |
| Speed | Up to 32 MPH |
| Range | 100 miles a full tank |
| Engine Oil Type/Amount: | SAE 10W30w 20 oz |
| Low Oil Shutoff Protection: | Yes |
| Air Filter: | Washable Foam |
| L x W x H: | 15 x 12 x 12 inches |
| Dry Weight: | 22.5 lbs |
| Output Shaft Length: | 2.28 in |
| Output Shaft Diameter: | 5/8 in |
Bicycle Specs
| Frame: | Aluminum |
| Gears: |
Shimano 7-Speed |
| Wheel Size: | 26 in |
| Fork: | Suspension Forks |
| Rear Shocks: | N/A |
| Bottom Bracket: | Cartridge Sealed |
| Tires: | Mountain, 26" x 4.0 inches |
| Front Brake: | Hydraulic Disc Brake |
| Rear Brake: | Hydraulic Disc Brake |
| Spokes: | 12G |
| Headset: | 1 1/8" |
| Weight |
32 kg total weight |
Warranty:
90 Day Limited Warranty. Covers only to the original retail purchaser of this product that this product is free from defects in material and/or workmanship for a period of ninety (90) days from the date of delivery.
