Sold out.
Description:
Turn your 3 wheeled bicycles into a 196cc 4 stroke beast. This Dual start engine can be fired up with a turn key ignition (Battery not included) or via the onboard pull start.
Using a custom steel plate adapter plate to bolt the motor to the rear end of most tricycles. In most cases, this is where the trikes rear basket is and will have to be removed. Gas Tank is mounted to the engine for easy re-fueling. This kit is not for the faint of heart.

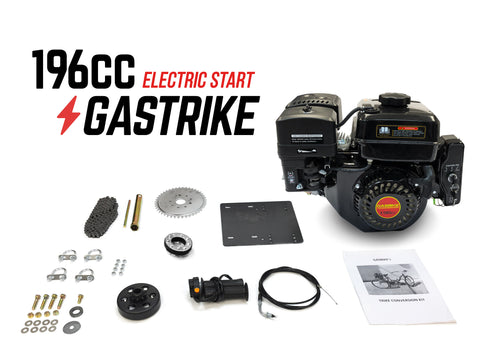

This motorized trike includes:
- 6.5 HP, 196cc OHV 4-Stroke Engine, Electric Start
- Centrifugal Clutch
- 415 Chain
- 44 Tooth Sprocket
- Pineapple Bushing Kit
- 3/16” Thick Steel Engine Mount
- (4) U-Clamps
- (4) 5/16-18 Bolts, Washers and Nuts
- 5/16-24 Bolt with BIG washer and thick washer
- Throttle handle with kill switch and wire extension
- Throttle Wire
- 2.8 L. Gas tank
- Muffler
- Installation Manual
ENGINE SPECS:
|
Engine Type |
Horizontal Single Cylinder 4-Stroke OHV |
|
Certification |
EPA / CARB Approved |
|
SKU |
4EO-006 |
|
Brand |
GasBike Engines |
|
Engine displacement (cc) |
196cc |
|
Horsepower (hp) |
6.5 HP |
|
Cooling System |
Forced air cooled |
|
Fuel Type |
87+ unleaded gasoline |
|
Fuel Capacity |
0.9 gallon (3.6 L) |
|
Fuel consumption ratio g/kW.h |
≤395 |
|
Engine Oil Type SAE |
10W-30 above 32F, 5W-30 at 32F or below |
|
Engine Oil Capacity |
0.6 L |
|
Run Times @ 50% Load with full tank |
3 hours |
|
Sound Level at 22 feet |
104 dB |
|
Bore x Stroke |
68mm x 54mm |
|
Compression Ratio |
8.5:1 |
|
Rotation viewed from PTO (power takeoff - the output shaft |
Counterclockwise |
|
Shaft |
3/4 x 2.43" |
|
Shaft Keyway |
3/16" (4.76mm) |
|
Shaft End Tapped |
5/16" -24 UNF |
|
Manual |
Yes |
|
Weight |
38 lbs |
|
Max. power kW/rpm |
4.8/3600 |
|
Rated. power kW/rpm |
3.8/3600 |
|
Max. Torque N.m/rmp |
11/2500 |
|
Package dimensions mm |
450*360*380 |
|
Battery for Electric Start |
12V 14ah |
Our gasoline operated products are NOT compliant with Environmental Protection Agency ( E.P.A. ) or California Air Resources Board (C.A.R.B) for the use on/off Public roads. Upon purchase, the buyer agrees to use products for racing (closed-course competition) only and NOT for on/off public roads.
